2 Sensor Front or Rear Parking Kit with Buzzer
Now shipping with a new 21.5mm design sensor that is more accurate with error correction feature.
When in reverse, the rear sensors automatically detect obstacles within 5 feet behind the vehicle
This kit can be installed in front bumper by getting power from the brake light instead of the reverse light for backup installation.
Distance is indicated between the vehicle and obstacle by three different interval sounds.
Audible warning sound of "BiBi", faster as you get closer to obstacle.
Detection range: 8 feet to 4 inches behind the vehicle
Detection range of single sensor:120cm in horizontal. 90cm in vertical

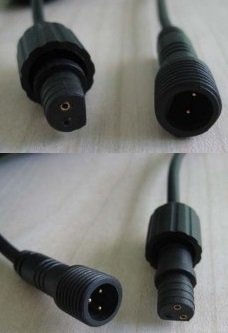

Includes 2 Gloss Black new style sensors with 8 foot leads and waterproof connectors, Control unit, Miniature Speaker, Hole Drill Bit and Installation Manual.
Control unit and Speaker are usually mounted in the rear of the vehicle tucked under an interior panel.
You get power by tapping into the reverse bulb for reverse installations and power from the brake light for front bumper installations.
Available in Gloss Black only.
Can also be installed in the front bumper and you can tap into any 12 volt source that goes on/off with the ignition or brake light.
Sensor detection range: 0cm~2.5m;
Buzzer range: 20cm~1.5m;
Advanced self-diagnosis with error indication;
All weather design, plastic housing, waterproof sensor connectors
Self Test function
2 analog sensors, 21.5mm plastic flat, 2.5m cable;
BUZZER, "hi-low-off" switch option;
Power Input: 9.6~15V DC.
Red Wire to +12V from Reverse Light
Black Wire to Ground
