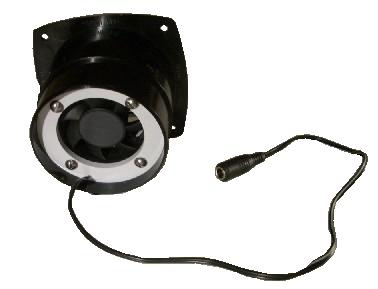

2 Fan Cabinet Vent Cooling System


This package is appropriate if you need two vents running simultaneously in your system.

This package can be used to either exhaust double the amount of air or to setup a 'push/pull' configuration. This would involve using one unit to pull air out (exhaust) and the other to push it in (intake). If using this configuration, the exhaust vent should be mounted high while the intake vent is mounted lower in the cabinet. It is usually preferable to have both vents pulling air out as fresh air will come in through even the smallest of openings around doors or through wiring holes, etc. 2 Fan Cabinet Vent Cooling System

Features

  • Complete Package for Easy Ordering
  • Double the Ventilation or Create 'Push/Pull' Configuration
  • Saves Space by Consolidating Power Supplies

    Package Includes

  • 2 - Cabinet Vents (Black, White or Tan)
  • 1 - Power Supply
  • 1 - Power Y-Cable (Long Leads)


  • General Specifications

  • Dimensions: W - 3 5/8" x L - 3 5/8" x D - 2 5/8"
  • Construction: PVC w/ Gloss Finish (Black, White & Tan)
  • Cooling System: 1 Brushless Levitation Fan w/Superior Bearing System (Est. 50,000hr)
  • Air Flow: 10.2 CFM (Max)
  • Noise: Silent to ~22 dba (Max)
  • Req' d Hole Size: 3 1/8" or 3 1/4" (Max)

    Power Specifications

  • Multiple Units Can Be Powered with a Single PS-300 Power Supply
  • Connection: 2-Pin FastWire System (Ensure proper polarity - Tip to +)
  • Voltage: 7 to 12V DC
  • Current: 40 milliamps at 12V DC




  • Availability: Usually ships the next business day.

    2 Fan Cabinet Vent Cooling System
    PK-CV1-xxxRetail: $160.00Sale Price: $125.00 (You save: 22%)

    Color:  Qty:


    3 1/8" Cabinet Vent Installation Kit3 1/8" Cabinet Vent Installation Kit3 1/8" Cabinet Vent Installation Kit


    Availability: Usually ships in 2-3 business days

    3 1/8" Cabinet Vent Installation Kit
    TS-CV-INSTRetail: $49.95Sale Price: $39.95 (You save: 20%)
    Qty:

    Basic Temp Controller - 88° or 80° F On/Off ControlBasic Temp Controller - 88° or 80° F On/Off ControlBasic Temp Controller - 88° or 80° F On/Off Control


    Availability: Usually ships in 2-3 business days

    Basic Temp Controller - 88° or 80° F On/Off Control
    TC-BSCRetail: $34.95Sale Price: $27.95 (You save: 20%)

    Controller:  Qty:
