  6 (2 Front / 4 Rear) Ultrasonic Parking Sensor Kit
A new breakthrough design! Unit senses any objects behind and to the side of the rear bumper (metal or plastic) within 7 feet through 6 small Black 21mm Anti-Collision Ultrasonic sensors that are mounted into the Front & Rear bumpers by drilling 2 21mm holes (drill bit included) in the front and 4 21mm holes in the rear bumper giving you a wider, more accurate field of detection. Audible & Visual Warning.
Black Ultrasonic sensors.
Speaker built into the display with volume control.
Kit features 6 sensors for full front & back coverage.
Unique rain-proof design works even when it is raining.
Power is supplied by splicing into backup lights, accessory and ground.
Functions:
2 Front Sensors are only active while applying the brakes. When in Reverse, Front sensors are switched off and 4 Rear sensors are active.
Display indication is in meters.
6 21mm recessed Black sensors for obstacle detection
Digital Detection range: 1 to 6.5 feet behind the vehicle.
Audible warning sound of "BiBi", faster as you get closer to obstacle.
Sound can be turned on or off at the display.
The distance and direction of obstacles behind and to the left or right side are displayed.
All components plug into each other.
Built to last - withstands bad weather and road shock.
Operating Voltage: DC 12v
Max. Power Consumption: 3.6W
Electrical Connections
Red Wire to +12V from Reverse Light (for Rear Sensors)
Yellow Wire to +12V from Brake Light (for Front Sensors)
Black Wire to Ground

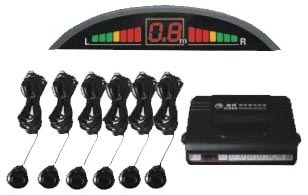

Package Include:
Car parking control unit (mount in trunk/rear of vehicle).
2 digit LED Display (5" wide x 1" high x 1" deep) with 16' cable (usually mounted in left corner or center of dash) with built in speaker with on/off switch.
6 Black 21mm In-Bumper obstacle sensors with 8' rear cables and 14' front cables.
6 Clear rubber spacers for angling sensors up (if necessary)
Drill Bit for drilling holes into bumper to mount the 6 sensors (If drilling through Metal, you will need a bi-metal 21mm bit and insulate the sensors from the metal).
6 Months Warranty
NOTE: These 6 sensor kits are not designed for long vehicles or trucks as the wires are not long enough and you cannot cut or splice the sensor wires. Only 4 Sensor Kits are available for longer vehicles or trucks.
