Wired Display - Silver 4 Ultrasonic Mercedes/Ford/Audi Type Reverse Sensors with LED Display
A new breakthrough design! Unit senses any objects behind and to the side of the rear bumper (metal or plastic) within 7 feet through 4 small 22mm Mercedes/Audi Style Anti-Collision Ultrasonic sensors that are mounted into the bumpers by drilling 4 22mm holes (drill bit included) giving you a wider, more accurate field of detection. Audible & Visual Warning.
Speaker built into the display with volume control.
Kit features 4 sensors for full back coverage.
Unique rain-proof design works even when it is raining.
Power is supplied by splicing into backup lights and ground.
Functions:
Auto detection of obstacles Behind & Left or Right by the backward radar while backing the car. Display is in feet.
Four silver 22mm recessed sensors for obstacle detection
Digital Detection range: 1 to 7 feet behind the vehicle.
Audible warning sound of "BiBi", faster as you get closer to obstacle.
Sound can be adjusted to higher, lower or off.
The distance and direction of obstacles behind and to the left or right side are displayed clearly with digit and cursor in number of feet.
All components plug into each other.
Built to last - withstands bad weather and road shock.
Operating Voltage: DC 12v
Max. Power Consumption: 3.8W
Package Include:
Car parking control unit (mount in trunk/rear of vehicle).
3 digit LED Display (3" wide x 1" high x 1/2" deep) with 16' cable (usually mounted in left corner or center of dash) with built in speaker with volume control.
4 Silver 22mm In-Bumper obstacle sensors with 11' leads.
Click Here to download Installation Manual in .pdf format (1.25mb)

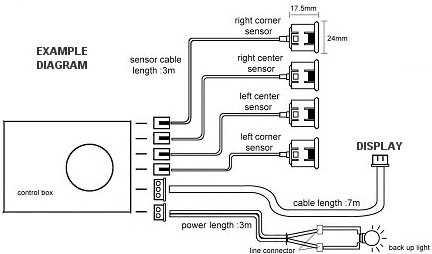

Wiring Diagram
6 Months Warranty
Drill Bit for drilling holes into bumper to mount the 4 sensors (If drilling through Metal, you will need a bi-metal 22mm bit).
Electrical Connections
Red Wire to +12V from Reverse Light
Black Wire to Ground
Click Here to view a 24 minute Sample Installation Video (requires IExplorer)
|
:
