Cabinet / Rack / Enclosure Venting & Cooling System
A complete package that will solve 90% of the heat- related problems the systems designer will experience when working with large systems and enclosures.

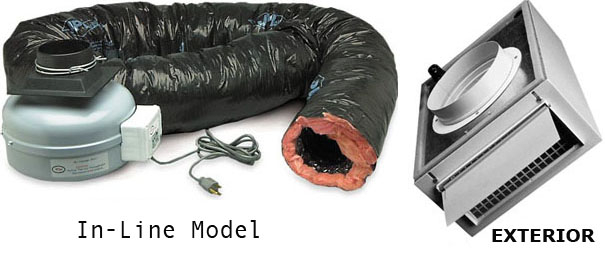

The System 1 is comprised of:
The fans — The in-line Energy-Star rated fan will exhaust 140 cubic feet of hot air per minute in free air, while the EXT version (not Energy Star rated) will exhaust 100CFM. With as much as 25' of tubing, either will still move a large volume of heated air-quietly.
The in-line version is 13" long and 9.5" in diameter at its widest. Both use a Swiss-made, balanced motorized impeller that produces minimal noise and vibration. They consume only 60 watts and are rated for continuous operation; we guarantee the System 1 fans for 3 years.
The tubing — The System 1 comes with 8 feet of 4" ID/ 6" OD flexible, acoustically-damped tubing. This diameter allows hot air to move slowly and quietly. Additional lengths are available and will reduce the amount of air moved.
The hot air collector — measures 6 ¼" square at its mounting flange; just screw the collector over a 4 ½" opening in the rear or other and slip the tubing on.
