Cabinet Toe Kick Vent & Cooling System

This toe kit system is perfect for installing in a cabinet to draw cooler air into a cabinet from the toe kick. There are many factors and variations related to how cabinets and the toe kick areas are constructed but this product should accommodate the more standard or common ways that cabinets are constructed.

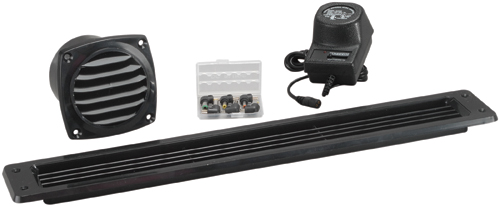

The package includes:

1 3" cabinet vent (Black)

1 vent drill (Black) Measures 2-5/8" x 17-1/2"

1 universal transformer (300mA).

Cabinet Toe Kick Vent & Cooling System

Specifications

Dimensions (Toe Kick Grill): W - 2 5/8" x L - 17 1/2"

Construction: PVC w/ Gloss Finish (Black)

Fan System: 1 Brushless Levitation Fan (Est. 50,000hr)

Air Flow: 10.2 CFM (Max)

Noise: Silent to ~22 dba

Req'd Hole Size (Fan/Grill): 3 1/8" or 3 1/4" for Cabinet Vent / 2" x 15 ˝" for Toe Kick Grill

Installation Information

This product is intended to be installed in the toe kick area of a cabinet. If the toe kick area is fully open with no dividers, the grill can be installed either in the front or sides of the cabinet. To facitilate airflow, a 3" Cabinet Vent is installed in the bottom of the cabinet to draw cool air into the cabinet.

Installation Instructions

Cut a 2"x15 ˝" Rectangle in the toe kick of the cabinet.

Cut a 3 Ľ" round hole in the inside, bottom of the cabinet which opens to the toe kick area.

Ensure there is passage/airflow between the two openings.

Install the Cabinet Vent (round hole) and grill on the toe kick.

Connect the Power Supply to the Cabinet Vent and plug in.
