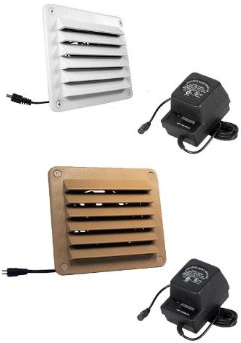

HiFlo Lite Cabinet Vent w/ Power Supply

This unit is ideal for aggressively venting cabinets and enclosures. It is self contained and features a large, top-quality brushless fan for higher airflow, low noise, and long life. The fan unit can be configured to pull air out of a cabinet (default configuration) or push air into the cabinet depending on the application. The fans are mounted using a special vibration damping system which eliminates noise caused by fan vibration and also facilitates easily changing the direction of the airflow. The unit is powered with the included DC Universal Power Supply.


  • Quick and Easy Installation
  • Quiet & Efficient Operation
  • Aggressively Circulates Air in a Cabinet or Enclosure
  • Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application
  • Compatible with the Temperature Controllers (TC- BSC & TC-AC)

    General Specifications

  • Dimensions (Grill/Fan Assembly): Grill: 5 1/2" W x 4 7/8" H x 5/8" D / Fan Unit: 5" x 4 1/2" x 1 1/8"
  • Construction: Textured PVC - Black
  • Cooling System: 1 - 92mm Brushless Levitation Fan (Est. 50,000hr)
  • Air Flow: 65 CFM (Max)
  • Noise: Silent to ~28 dba (Max)
  • Req'd Hole Size: 3" x 3"

    Power Specifications

  • Connection: 2-Pin FastWire System (Ensure proper polarity - Tip to +)
  • Voltage: 7 to 12V DC
  • Current: 125 milliamps at 12V DC

  • HiFlo Lite Cabinet Vent w/ Power Supply

    HiFlo Lite Cabinet Vent w/ Power Supply
    VS-HFL-xxx-PWRRetail: $119.95Sale Price: $89.95 (You save: 25%)
