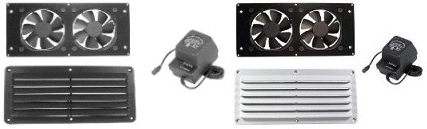

HiFlo Vent or Enclosure Basic Cooling System

This unit is ideal for aggressively venting cabinets and enclosures. It is self contained and features a large, top-quality brushless fan for higher airflow, low noise, and long life. The fan unit can be configured to pull air out of a cabinet (default configuration) or push air into the cabinet depending on the application. The fans are mounted using a special vibration damping system which eliminates noise caused by fan vibration and also facilitates easily changing the direction of the airflow. The unit is powered with DC voltage and when used with our Universal Power Supplies, can be run completely silent or more aggressively depending on the application.

Features

Quick and Easy Installation

Quiet & Efficient Operation

Aggressively Circulates Air in a Cabinet or Enclosure

Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application

Compatible with the Temperature Controllers (TC- BSC & TC-AC)

General Specifications

Dimensions (Fan Unit): L - 10 1/8" x H - 4 7/8" x D - 1 5/8"

Construction: PVC Grill (Tan, White or Black)

Fan System: 2 - 92mm Brushless Levitation Fans (Est. 50,000hr)

Air Flow: 130 CFM (Max)

Noise: Silent to ~50 dba

Req' d Hole Size: 3 3/4" x 7 7/8"

Available in Plastic: Black, White, and Tan
