  Mobile Cell Phone Signal Amplifier Boost Cradle Kit
| Features |
• Works with all cell phones (except iDEN/Nextel)
• Supports CDMA, TDMA, GSM and AMPS, in addition to 1x and 3x data protocols such as HSDPA, EVDO and EDGE
• Up to 3 watts maximum output power
• Power control logic ensures maximum output power is within cellular standards
• Requires no physical connection to cell phone or data card
• Provides high signal-to-noise ratio
• protects cell sites from harmful interference
• Dual band - Cellular and PCS
• FCC and IC type accepted
|
|
| Specifications |
Part Number |
|
811214 |
Frequency |
|
824-894 MHz / 1850-1990 MHz |
Gain |
|
cell site controlled |
Max Output Power |
|
3 watts (cell site controlled) |
Max RF
|
|
+35 dBm / +33 dBm |
Noise Figure
|
|
3.5 dB nominal |
Flatness
|
|
± 2 dB / ± 2 dB |
Isolation |
|
> 50 dB uplink/downlink |
Power Requirements |
|
12 V DC, 2 A |
Connectors |
|
FME-Male 50 ohms |
Dimensions |
|
5 x 3.5 x 1.2 (inches) 12.7 x 8.9 x 3 (cm) |
Weight |
|
1.03 lbs / 0.468 kg |
|

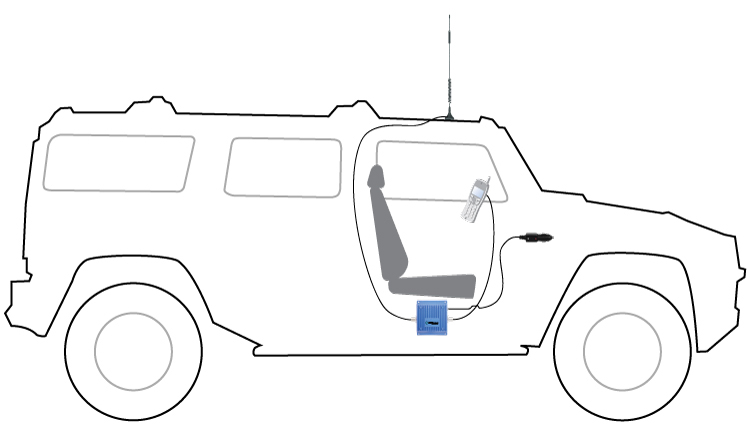

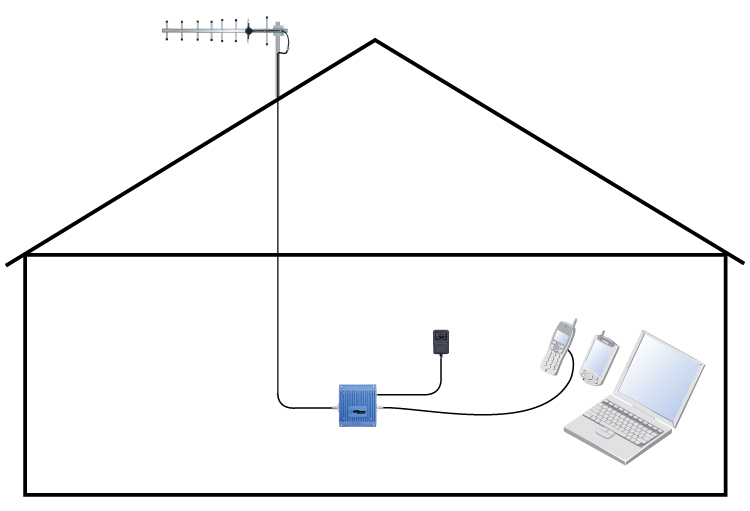

| Applications |
|
:
