Professional OEM Car Rear 4 Sensor Parking System - Fits All Passenger Vehicles
Now shipping with a new 22mm design sensor that is more accurate.
When in reverse, the rear sensors automatically detect obstacles within 5 feet behind the vehicle
Distance is indicated between the vehicle and obstacle by three different interval sounds.
Audible warning sound of "BiBi", faster as you get closer to obstacle.
Detection range: 8 feet to 4 inches behind the vehicle
Includes 4 Black new style sensors with 8 foot leads, Control unit, Miniature Speaker, 4 plastic spacers for vertical aiming of In-bumper sensors, Hole Drill Bit and Installation Manual.
Control unit and Speaker are usually mounted in the rear of the vehicle tucked under an interior panel.
You get power by tapping into the reverse bulb.

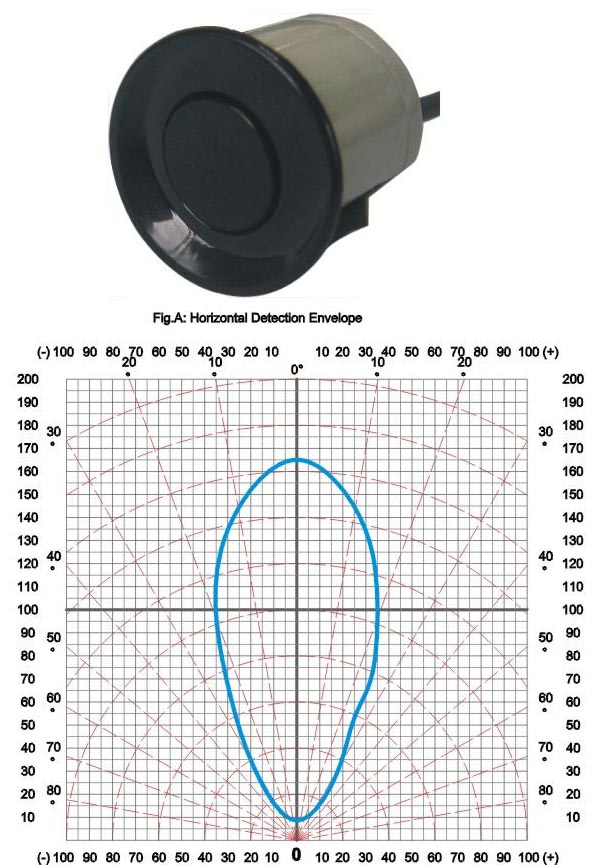

Available in Black (picture of sensor below).
Can also be installed in the front bumper and you can tap into any 12 volt source that goes on/off with the ignition.
Features
Sensor detection range: 0cm~2.5m;
Buzzer range: 40cm~1.5m;
Advanced self-diagnosis with error indication;
All weather design, plastic housing;
4*MF1 analog sensor, 22mm plastic flat, 2.5m cable;
BUZ01, "hi-low-off" switch option;
Power Input: 9.6~15V DC.
Click Here to view a 24 minute Sample Installation Video (requires IExplorer)
Electrical Connections
Red Wire to +12V from Reverse Light
Black Wire to Ground
|
:
