  RECESSED PLASMA TV VENT COOLING SYSTEM

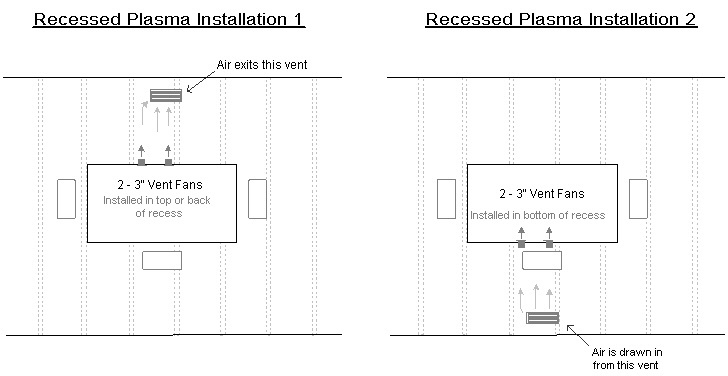

 This vent system is designed for venting a recessed mounted plasma or LCD TV which is subject to major heat buildup. There are many factors and variations related to how the recessed openings are framed during construction but this product should accommodate most situations where a plasma TV is framed and recessed in a wall.
This system is easily installed and extremely effective. It is however critical that the installer uses proper judgment prior to installing the product to limit damage or complications that may occur (hitting studs, etc.).
Features
Complete Package for Easy Ordering
Quiet & Efficient Operation
Installation in a Sheetrock or In-Wall Cabinetry Recess (Professional Installation Recommended)
Utilizes Temperature Controller for Automatic On/Off at Approximately 88°F. Advanced Temperature Controller can also be Used for Greater Control

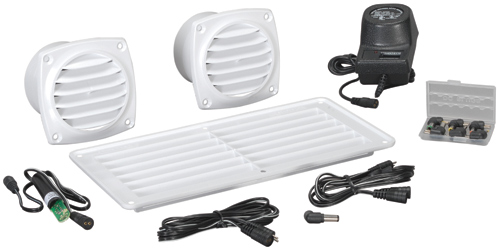

System Includes
2 - White, Black or Tan Cabinet Fan Vents
1 - Vent Grill (White, Tan or Black)
1 - Temperature Controller
1 - Universal Transformer (300mA)
1 - Power Y-Adapter Cable
General Specifications
Dimensions (Wall Grill): 10.25" W x 5" H
Construction: ABS Plastic - Smooth
Fan System: 2 Units w/ 1 - Brushless Levitation Fan Each (Est. 50,000hr)
Air Flow: 20.4 CFM (Max)
Noise: Silent to ~28 dba
Req’d Hole Size (Fan/Grill): 3 1/8" or 3 1/4" Round (Max) / 8.5" W x 3.5" H
|
