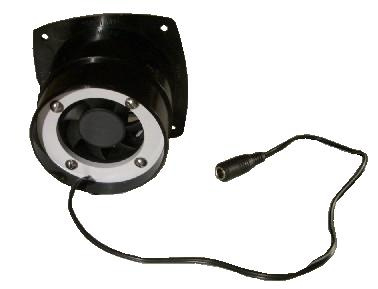

Slim Cabinet Cooling Vent

This unit features the same grill face as the Cabinet vent and is also self contained but it is only about 1" in depth. It is an attractive vent that is mounted by drilling a 3 1/8" to 3 1/4" hole in a cabinet and slide it in - connect the power cord to a power supply and you're all set (Power supply included). The fan can also be reversed to either pull air out of a cabinet or draw air into the cabinet.

For installation in wood cabinets or enclosures, use a 3 1/8" to 1 1/4" hole saw or for drilling into metal use a good quality 3" hole saw.


  • Quiet & Efficient Operation
  • Effectively Circulates Air in a Cabinet or Enclosure
  • Sleek and Compact Size Allows for Placement in the Tight Spaces
  • Quick and Easy Installation
  • Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application

    General Specifications

  • Dimensions: W - 3 5/8" x L - 3 5/8" x D - 1 1/4"
  • Construction: PVC w/ Gloss Finish - Black or White
  • Cooling System: Brushless Levitation Fan w/Superior Bearing System (Est. 50,000hr)
  • Air Flow: 10.2 CFM (Max)
  • Noise: Silent to ~22 dba (Max)
  • Req'd Hole Size: 3 1/8" or 3 1/4" (Max)

    Power Specifications (Power Supply Included)

  • Connection: 2-Pin FastWire System (Ensure proper polarity - Tip to +)
  • Voltage: 5 to 12V DC
  • Current: 50 milliamps at 12V DC
  • Slim Cabinet Cooling Vent

    Slim Cabinet Cooling Vent
    VS-SV-xxx-PWRRetail: $99.95Sale Price: $69.95 (You save: 30%)

    Color:  Qty:

    3 1/8" Cabinet Vent Installation Kit3 1/8" Cabinet Vent Installation Kit3 1/8" Cabinet Vent Installation Kit

    Availability: Usually ships in 2-3 business days

    3 1/8" Cabinet Vent Installation Kit
    TS-CV-INSTRetail: $49.95Sale Price: $39.95 (You save: 20%)
