Wireless Dual band 900 and 1800MHz GSM/3G DCS LTE Cell Phone Mobile Signal Booster Extender Repeater Amplifier Kit

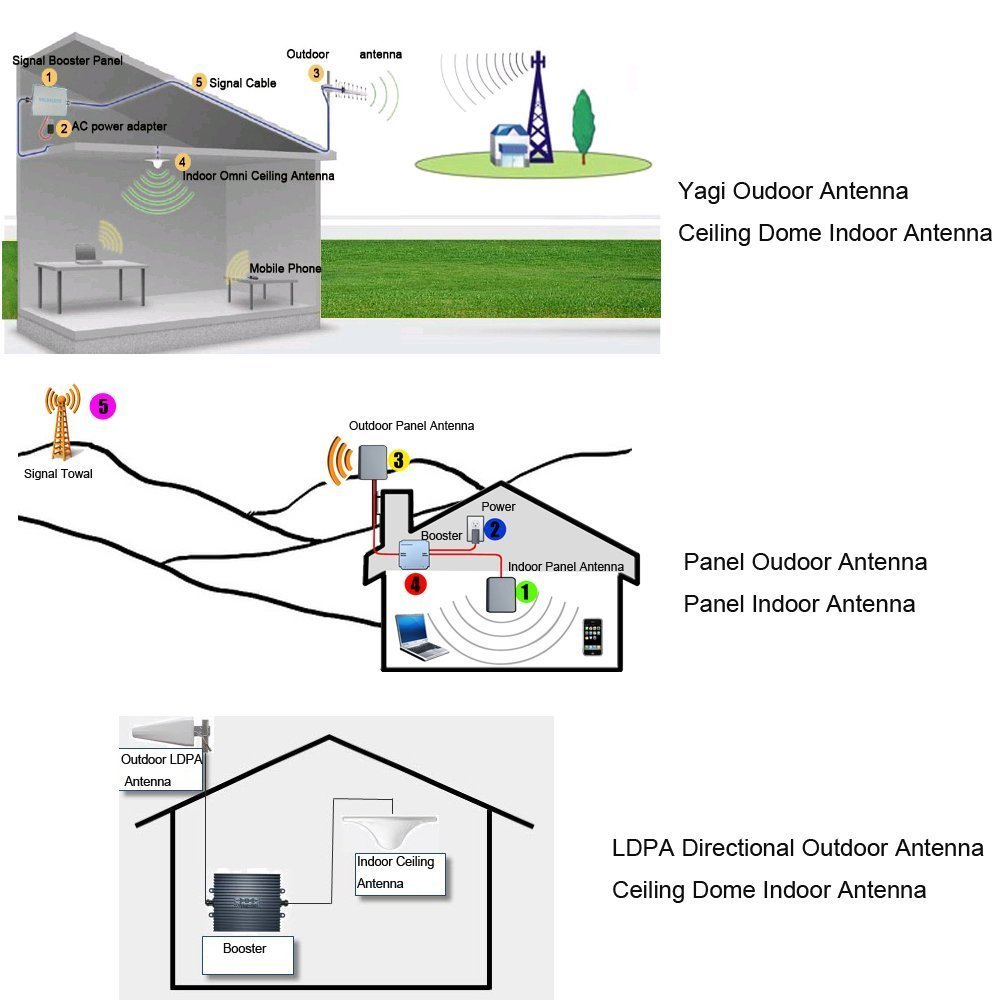

Signal Booster with International Frequency Capability, Designed for consumers, the mobile phone signal booster extends Mobile Zones for single or multiple users in homes or offices. Now available for International Frequencies, dual-band model works with 900MHz phones and 1800MHz mobiles simultaneously. Package includes everything you need, amplifier base unit and base unit antenna (pictured), signal antenna, power supply and RG-59 coaxial cable. The omni-directional antenna is easy to orient and receive signals from multiple towers.

1.High gain, easy installation and operation.
2.Full-duplex, single-port design, build-in power supply.
3.Use ALC technology, adjust extent automatically
4.LED Light Working & Signal Condition Indicators
5.Big linear power, control inter-modulation & scatteration stably
6.Dependability stand by GB6993-86 standard
7.Compatibility of electromagnetism according with ETS300 609-4
8.CE and RoHs Approved

Specification:

  • Frequency : 890~915MHz,935~960MHz,1710~1785MHz ,1805~1880MHz
  • Power : -70~-40 dBm / FA(1.23MHz)
  • Gain :60±3dB 66±3dB
  • Item Dimension：210 x160 x 20 mm

    Signal Tuning:

    1.If no signal after activating repeater, please check if outdoor antenna points to signal tower or elsewhere have strong signal and check if signal strength increases -70DBM.
    2.If you can not call out, please adjust the direction of outdoor antenna.
    3.If signal strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not in a same horizontal line.

    Installation note:

    1.Please make sure distance above 10M between indoor and outdoor antenna, it’s better divides one from another by a wall.
    2.Please try to choose a good signal place to set up the outdoor antenna.
    3.Please make sure that there are is good signal of 4-5 bars outdoor, or it will not work inside.


    Package Includes:

  • 1 x GSM 900MHz/DCS1800MHz Dual Band Repeater(Max. Square Meters: About 1500 M2)
  • 1 x Indoor Panel Antenna
  • 1 x Outdoor Antenna
  • 1 x AC Adapter
  • 1 x User Manual
  • 1 x 10 Meter Cable


    • Wireless Dual band 900 and 1800MHz GSM/3G DCS LTE Cell Phone Mobile Signal Booster Extender Repeater Amplifier Kit


    Wireless Dual band 900 and 1800MHz GSM/3G DCS LTE Cell Phone Mobile Signal Booster Extender Repeater Amplifier Kit
    YX520-i-wireless-signal-extender-dual-band-cell-phone-signal-booster-for-home-and-office---900-and-1800-mhz-Retail: $499.99Sale Price: $423.95 (You save: 15%)
