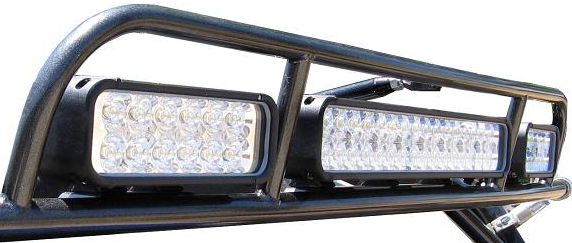

Introducing a first in 12vdc LED lighting technology with the Xmitter LED Light Bar. Designed for On and Off Road use, each weatherproof low profile light bar produces tremendous light output, with a 12" bar producing 3600 lumens, 100 more lumens than a 35 watt HID light, while drawing only 4 amps and boasting an astonishing 292,000 hour life span.
Each light bar is manufactured of stainless steel and aluminum for high strength and durability, but measuring in at less than 3" tall and 4" deep, Xmitter Light Bars are perfect for mounting in tight spaces where traditional lights would never fit. Xmitter Light Bars are available from 6" to 42" lengths and come standard with flat surface and tube mounts and rubber shock isolators. Each mount slides along the lower extrusion to match any existing mounting holes and it allows for horizontal and vertical adjustment, this patent pending technology is nonexistent with any other light! Tubing/roll cage mounts are also available in 1.5", 1.75" and 2" black anodized billet aluminum, sold separately.
The LED Xmitter bar is ideal for Dirt Bikers, snowmobilers, ATV and other people looking for a light source for their low power ride. The bar will automatically adjust itself to lower amperage so it can
even run off a stator on a dirt bike. Patent Pending
|
Model |
Length |
# of LEDs |
Watts |
Amp Draw |
Lumens |
Price |
|
XIL-80 |
6" |
8 |
24 |
2 |
1440 |
$ 279.00 |
|
XIL-120 |
9" |
12 |
36 |
3 |
2160 |
$ 306.00 |
|
XIL-200 |
12" |
20 |
60 |
5 |
3600 |
$ 499.00 |
|
XIL-400 |
22" |
40 |
120 |
10 |
7200 |
$ 899.00 |
|
XIL-600 |
32" |
60 |
180 |
15 |
10800 |
$ 1299.00 |
|
XIL-800 |
42" |
80 |
240 |
20 |
14400 |
$ 1669.00 |
XTREME INTENSITY LED Models
XIL-80: 6" 8 LED XMITTER BAR, BLACK
XIL-120: 8" 12 LED XMITTER BAR, BLACK
XIL-200: 12" 20 LED XMITTER BAR, BLACK
XIL-400: 22" 40 LED XMITTER BAR, BLACK
XIL-600: 32" 80 LED XMITTER BAR, BLACK
XIL-800: 42" 80 LED XMITTER BAR, BLACK
| Features |
| |
Low Amp Draw |
| |
Instant Light Output |
| |
200,000 Hour Life |
| |
Small Housing |
| |
Efficient Heat Dissipation |
| |
Mounting System within the extrusion |
| |
Aluminum Housing |
| Height |
2.75" |
| Total Length |
Varies by Model from 6" to 42" |
| Depth |
3" |
| Housing |
Aluminum |
| Number of LEDs |
Varies by model from 8 LED's to 80 LED's |
| Bulb Type |
3watt LEDs |
